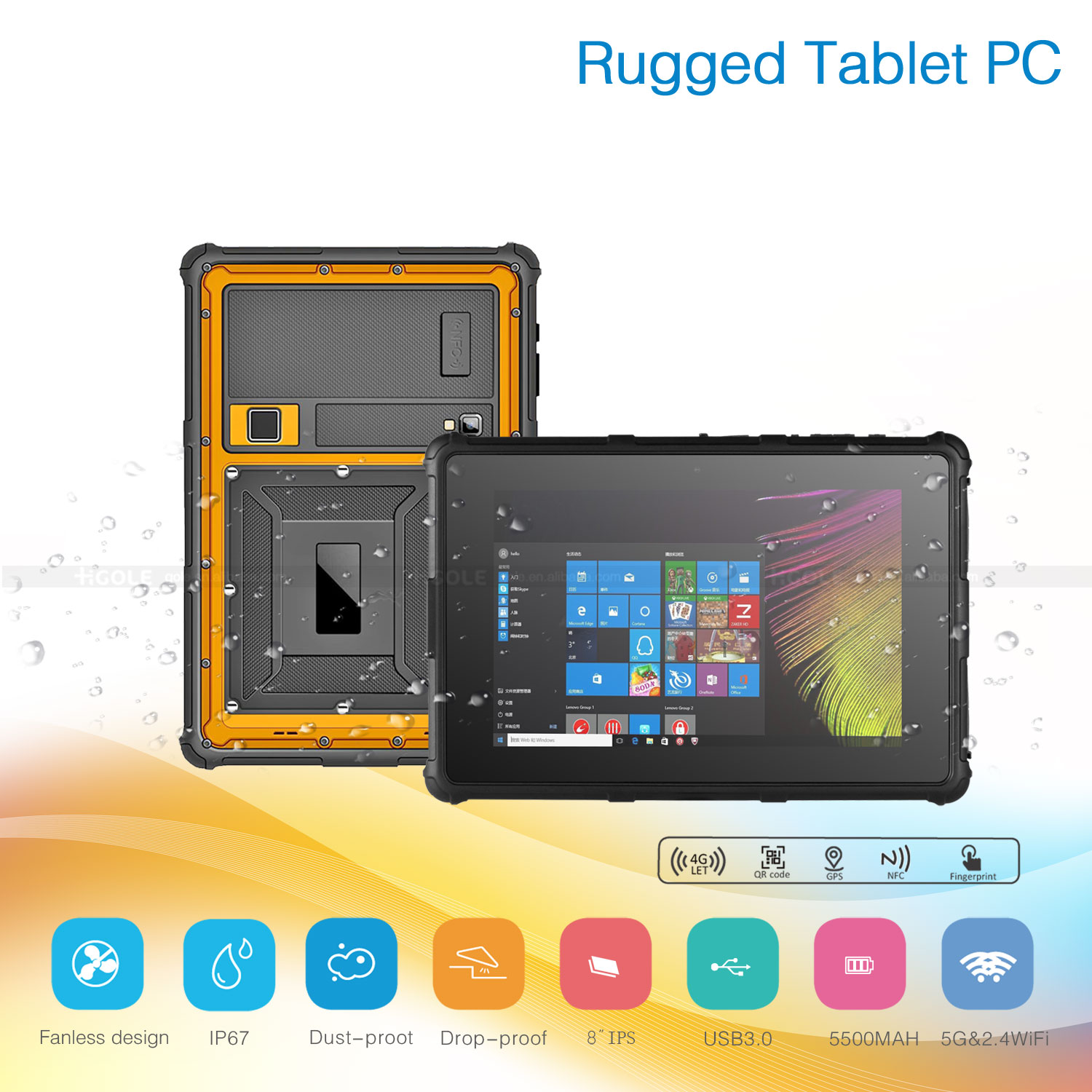

The 8-inch win10 reinforced three prevention tablet adopts waterproof, dustproof and fall proof design, and has IP67 waterproof grade certification. It can be immersed in 1m deep water at normal temperature and pressure without causing damage to the fuselage. At the same time, it can withstand 1.2m height drop, which is very suitable for use in various harsh environments. Equipped with Intel quad core powerful processor, the main frequency is up to 1.92ghz, which can bring users a smooth operation experience. Every detail of the flat machine from inside to outside has been carefully designed, made by rigorous technology and made by hundreds of fine processes.
| Key Features | IP67；8" IPS + Intel Z8350 + 4GB +64GB + WiFi 2.4G&5G Dual band + HDMI1.4 + USB3.0 | |||||
| System Physical Standard Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Product Form | Form Factor | IP67 8"Rugged Tablet PC | ||||
| Dimensions | 234×159×21.5mm | |||||
| Weight | 0.7KG | |||||
| LCD | Screen Size | 8" | ||||
| Screen Resolution | 800×1280 (IPS+300ANSI) | |||||
| TP | Touch Module | G+G Multi-Touch | ||||
| Battery | Type | Rechargeable lithium polymer | ||||
| Capacity | 5500mAh/3.7V | |||||
| Working Time | Over 6 hours (FHD local video display) | |||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Intel Cherry Trail x5-Z8350 Quad-Core | ||||
| Speed | 1.44GHz ~ 1.92GHz | |||||
| GPU | Type | Intel HD Graphics Gen8 | ||||
| Memory | Capacity | 4GB | ||||
| Storage | eMMC | 64GB | ||||
| SSD | Optional with M.2 slot | |||||
| Camera | Front | 2M | ||||
| Rear | 5M | |||||
| Speaker | Built-in | 8Ω/1W with water proof | ||||
| Micphone | Built-in | Yes | ||||
| G-sensor | Built-in | Yes | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module: Broadcom AP6256 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band | ||||
| Bluetooth | BT Module: Broadcom AP6256 | Bluetooth4.2 | ||||
| 3G/4G LTE | Optional | Optional with M.2 slot | ||||
| QR code Scanners | Optional | Optional | ||||
| NFC | Optional | Optional | ||||
| GPS | BD2/GPS | Optional | ||||
| Fingerprinter | Capacitive fingerprint sensor | Optional | ||||
| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| USB Interface | USB3.0 | ×1pc | ||||
| Type-C (2.0) | ×1pcs (Base on USB2.0; DC-IN AND data transmit) | |||||
| SD / TF Card reader | TF Card reader | ×1pc (up to 256GB) | ||||
| SIM Card Slot | SIM Slot for 3G/4G LTE | Optional | ||||
| Audio Jack | 3.5mm standard | ×1pc | ||||
| HDMI | Micro HDMI 1.4 | ×1pc | ||||
| Video output through HDMI | Up to 4K | |||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | ×1pc | ||||
| Volume | Down/UP | ×1pc | ||||
| Hotkeys | Contral QR Scanner | ×1pc | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 5V/3A (Type-C) | ×1pc | ||||
| User's Manual | User's Manual | ×1pc | ||||
| Handle Straps | Optional | Optional | ||||
| Extension Docking | USB2.0×1pc ; DC IN × 1pc | Optional | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| PXE | Preboot Execution Environment | / | ||||
| Operating System | Windows 10 | Optional | ||||
| Linux | Test by end user | |||||
| Environment: | ||||||
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) | ||||
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |||||
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing | ||||
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |||||
| Certification: | ||||||
| IP67 | IP67 Certification | Yes | ||||
| Other | Other | Optional | ||||
